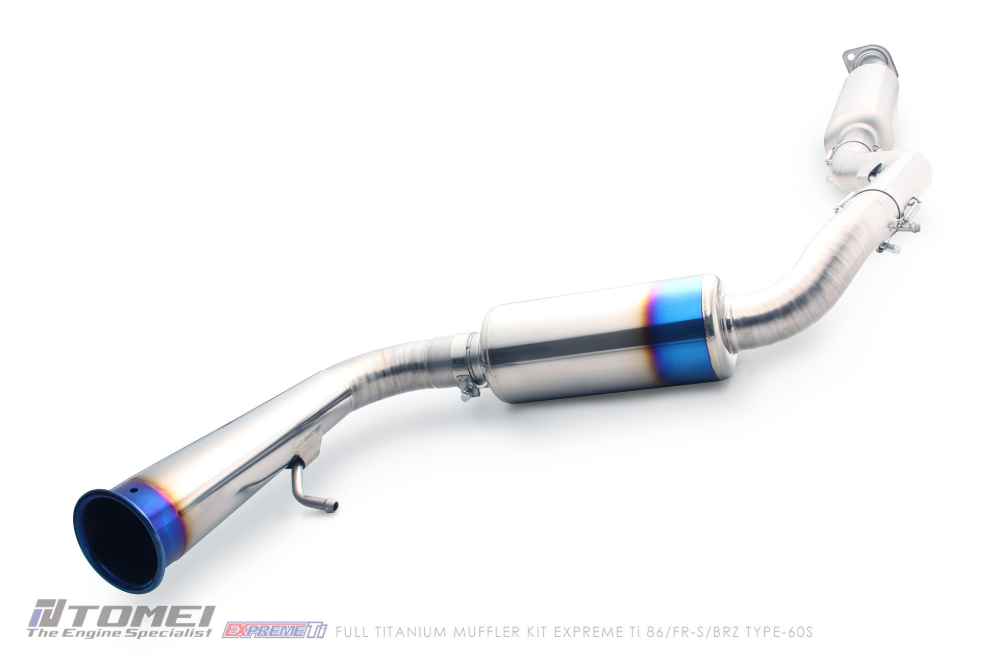

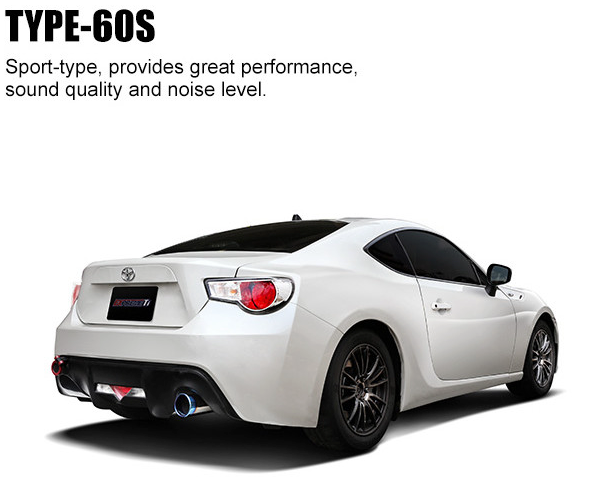

Tomei Full Titanium Muffler Expreme Ti Single TYPE-60S - 2013-2016 Scion FR-S / 13-21 Subaru BRZ / Toyota 86 & GT86

The TOMEI EXPREME Ti Single TYPE-60S is a full titanium single-exit cat-back exhaust designed specifically for naturally aspirated FA20-powered BRZ, FR-S, and 86 builds. Built with TOMEI’s race inspired layout philosophy, this system prioritizes weight reduction, exhaust flow efficiency, and that unmistakable titanium sound.

Weighing in at approximately 14 lbs total, the TYPE-60S dramatically reduces weight compared to the factory exhaust while improving flow throughout the powerband. With 60.5mm piping and a 105mm burnt-tip outlet, it delivers a sharp, aggressive tone under acceleration while staying properly sized for naturally aspirated performance.

Key Features

• Full Titanium Construction: Lightweight titanium design for major weight savings and improved response.
• Single-Exit Racing Layout: Minimal bends for efficient exhaust flow and a true motorsport-inspired look.
• FA20 Naturally Aspirated Focus: 60.5mm piping is ideal for NA setups looking for maximum flow without sacrificing torque.
• Ultra-Lightweight Design: Approximately 14 lbs total system weight.
• 105mm Burnt Titanium Tip: Large polished tip with burnt blue finish for the signature TOMEI look.
• Section Pipe Assembly: Uses springs and clamps instead of conventional flanges to reduce weight and eliminate gaskets.
• High-Quality Titanium Sound: Produces the dry, sharp, race-inspired tone only a thin-wall titanium exhaust can deliver.

Why We Like It

The TYPE-60S is the right TOMEI for the naturally aspirated FA20 owner who wants the lightness and character of a full titanium single exit without going oversized. It is aggressive, responsive, and purpose-built for NA performance. If you are staying naturally aspirated, this is the sweet spot. If you plan to add a turbo or supercharger, we recommend stepping up to the TYPE-80S.

Ultra-Lightweight Design

TOMEI designed the EXPREME Ti series with weight reduction and exhaust efficiency as top priorities. The titanium material is carefully sized—not too thick and not too thin to maximize performance gains while keeping response and torque in mind.

Racing Layout

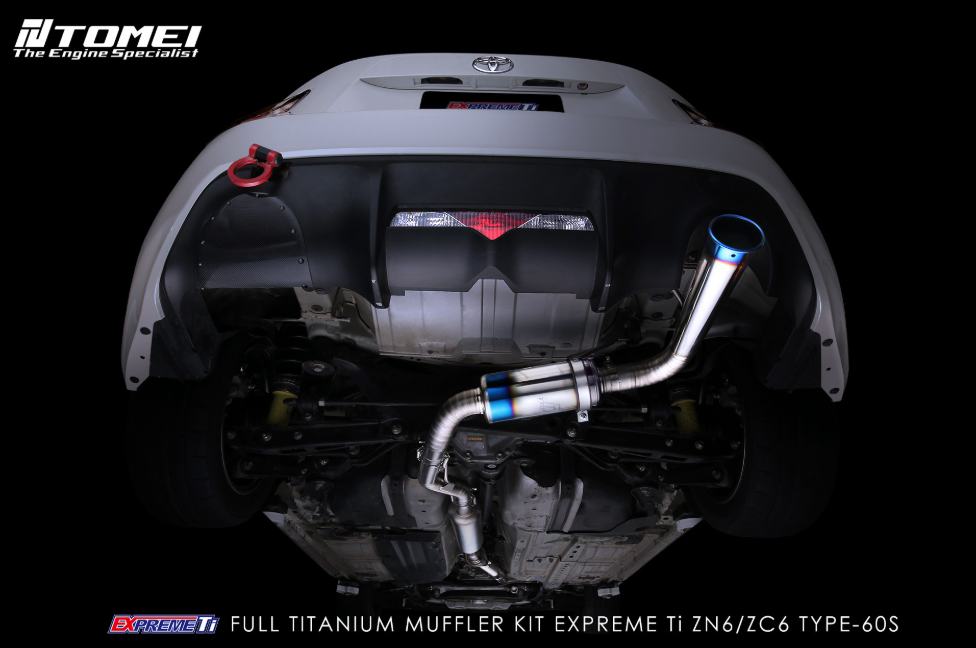

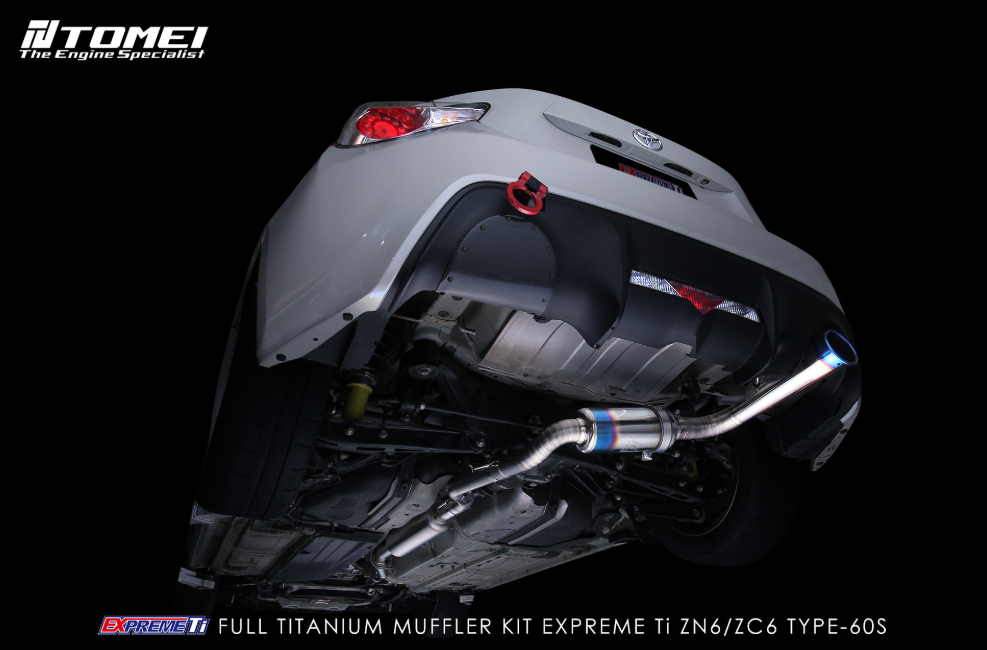

The single exit layout uses the least amount of bends possible to keep exhaust flow direct and efficient. Inspired by purpose-built race cars, this design still fits within the factory body layout, making it suitable for street-driven vehicles while delivering a much more aggressive motorsport feel.

High Sound Quality

A full titanium racing-layout exhaust produces a sound that stainless systems simply cannot replicate. The TYPE-60S delivers an aggressive tone at idle and under acceleration, with the sharp resonance and lightweight character that define the TOMEI EXPREME Ti series.

High-Durability Glass Wool

TOMEI uses long-fiber wool threads inside the silencer for improved durability over traditional fiberglass packing. This material is designed to hold up better over time, even with extended high-temperature exposure under both high and low pressure conditions.

Specifications

• Series: TOMEI EXPREME Ti
• Type: Single TYPE-60S
• Engine Compatibility: FA20 / 4U-GSE
• Material: Full titanium
• Main Piping Diameter: 60.5mm / 2.4"
• Tip Diameter: 105mm / 4.13"
• Exit Style: Single passenger-side rear exit
• Tip Finish: Polished titanium with burnt blue end
• Weight: Approximately 14 lbs
• Recommended Use: Naturally aspirated FA20 applications

Installation Notes

• Designed as a cat-back exhaust for compatible FA20 BRZ/FR-S/86 applications.
• Uses spring and clamp style section pipe assembly instead of conventional flanges.
• Handle titanium components carefully during installation to avoid scratches or damage.
• Recheck all clamps and hardware after the first heat cycle.

What’s in the Box

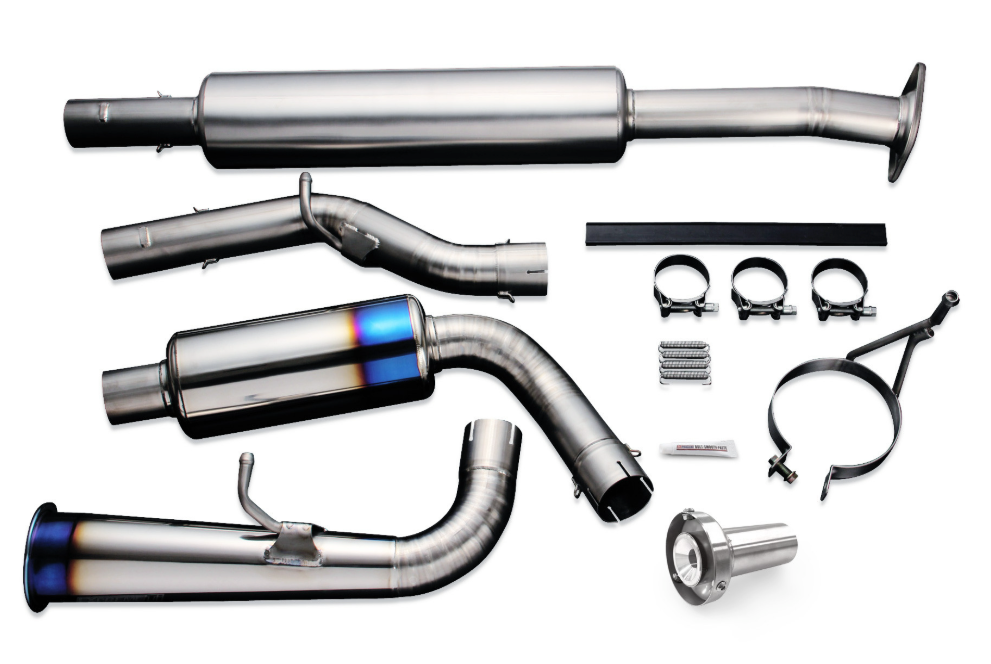

• TOMEI EXPREME Ti Single TYPE-60S exhaust system
• Springs, clamps, and required installation components per TOMEI kit contents

Compatibility & Disclaimers

Designed for 2013–2020 FA20-powered BRZ, FR-S, and 86 applications. This exhaust is best suited for naturally aspirated setups. For turbocharged or supercharged builds, the larger TYPE-80S system is recommended. Exhaust sound and volume may vary depending on headers, front pipe, over pipe, and other supporting modifications. Always verify local noise and emissions regulations before installation.
