TOMEI Full Titanium Muffler EXPREME Ti Single TYPE-60R – 2013-2016 Scion FR-S / 13-21 Subaru BRZ / Toyota 86 & GT86

The TOMEI EXPREME Ti Single TYPE-60R is a full titanium single-exit exhaust built with one clear priority: performance. Designed for naturally aspirated FA20-powered BRZ, FR-S, and 86 builds, the TYPE-60R focuses on maximum weight reduction, efficient exhaust flow, and the raw titanium sound that makes TOMEI systems so iconic.

TOMEI keeps the layout as straight as possible to reduce bends, save weight, and improve flow. Instead of traditional heavy flanges, the TYPE-60R uses a spring and clamp section assembly to cut even more weight. The result is an incredibly lightweight system at just 10.14 lbs, making it one of the most aggressive lightweight exhaust options for the FA20 platform.

Key Features

• Full Titanium Construction: Ultra-lightweight titanium design for major weight savings and sharp response.
• TYPE-60R Performance Layout: Designed for naturally aspirated FA20 engines with a focus on maximum weight reduction and flow.
• Single-Exit Design: Straight, efficient layout with fewer bends and less material.
• Spring & Clamp Assembly: Reduces weight compared to traditional flange-style connections.
• 4.1" Titanium Tip: Large polished titanium tip with the signature TOMEI motorsport look.
• 2.4" Inner Diameter Tubing: Properly sized for naturally aspirated performance.
• Glass Wool Muffler Packing: Designed for high sound quality and durability under heat.
• New 3-Step Sound Reducer Included: Allows more flexibility in sound level depending on setup and use.

3-Step Sound Reducer

• Standard
• Quiet Mode 1
• Quiet Mode 2
• Quiet Mode 3

Why We Like It

The TYPE-60R is for the driver who wants the lightest, most performance-focused TOMEI single-exit for an NA FA20 build. It is louder, lighter, and more aggressive than the more street-balanced options, making it a great fit for drivers who care more about response, weight savings, and motorsport character than staying subtle.

VS OEM/Stock Exhaust

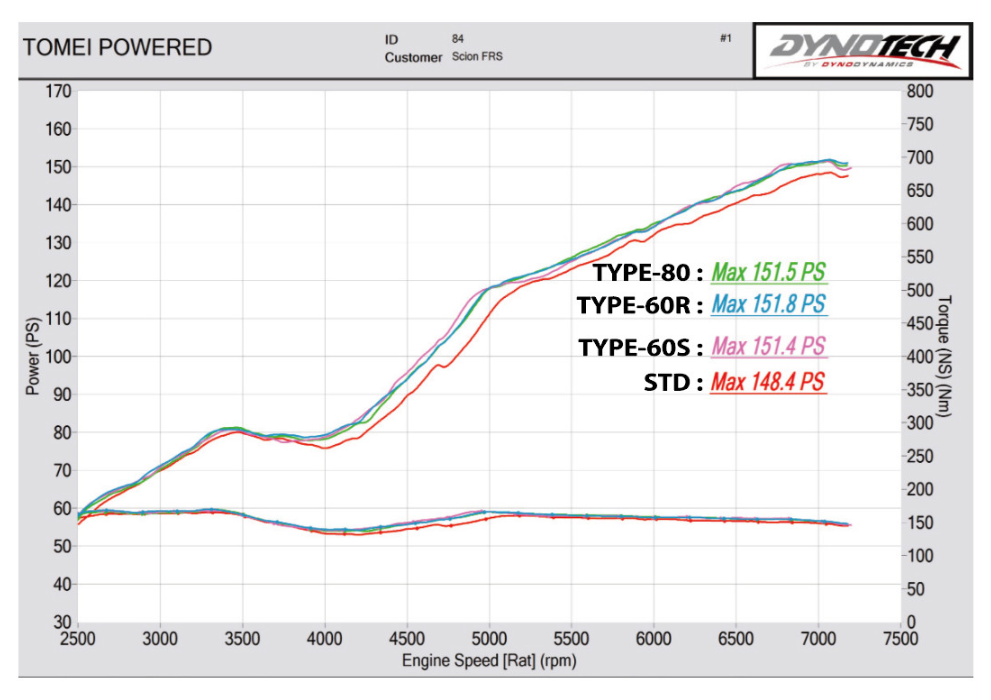

Compared to the factory exhaust, the Tomei Type-60R is a much more performance-focused setup built around weight reduction, improved exhaust flow, and sharper response. The stock exhaust weighs roughly 38.36 lbs, while the Tomei 60R comes in at only 10.1 lbs, cutting about 28 lbs from the rear of the car. That is a massive reduction, especially in a place where weight noticeably affects how the car feels during acceleration, cornering, and transitions. On the dyno, the stock system peaks at 148.4 PS, while the Tomei 60R reaches 151.8 PS, showing a modest but measurable gain of about 3.4 PS. The real advantage of the 60R is not just peak power, though. Its lightweight titanium construction and straighter, less restrictive design help the FA20 breathe more freely, reduce unnecessary mass, and deliver a more aggressive, motorsport-inspired driving experience compared to the quieter and heavier factory exhaust.

TOMEI Performance Philosophy

TOMEI starts with high-quality raw materials and strips the exhaust down to what matters most: flow, weight, and durability. Titanium replaces steel, the layout is kept as straight as possible, and unnecessary hardware is removed wherever possible. This is the type of design that comes from TOMEI’s long racing heritage and commitment to precise, purpose-built components.

Specifications

• Series: TOMEI EXPREME Ti
• Type: Single TYPE-60R
• Engine Compatibility: FA20 / 4U-GSE
• Material: Full titanium
• Main Piping Inner Diameter: 2.4"
• Tip Diameter: 4.1"
• Exit Style: Single exit
• Muffler Packing: Glass wool
• Weight: 10.14 lbs
• Recommended Use: Naturally aspirated FA20 applications focused on maximum weight reduction and performance

Installation Notes

For Tomei's official install instructions please click here.

• Designed as a cat-back exhaust for compatible FA20 BRZ/FR-S/86 applications.
• Uses spring and clamp style section assembly instead of traditional flange connections.
• Handle titanium components carefully during installation to avoid scratches or damage.
• Re-check all clamps, springs, and hardware after the first heat cycle.
• Sound level may be aggressive depending on headers, over pipe, front pipe, and other exhaust modifications.

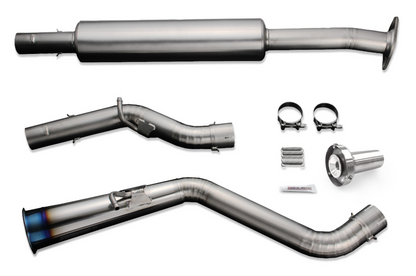

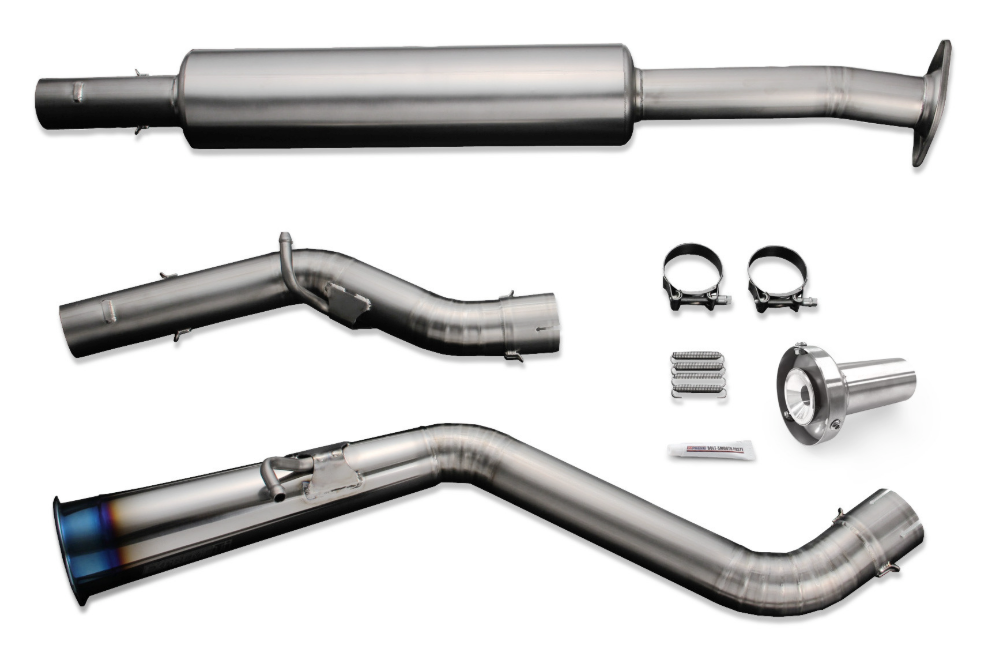

What’s in the Box

• TOMEI EXPREME Ti Single TYPE-60R exhaust system
• 3-step sound reducer
• Springs, clamps, and required installation components per TOMEI kit contents

Compatibility & Disclaimers

Designed for 2013–2020 FA20-powered BRZ, FR-S, and 86 applications. This exhaust is best suited for naturally aspirated setups and is focused on maximum performance and weight reduction. Exhaust sound and volume may vary depending on headers, front pipe, over pipe, and other supporting modifications. Always verify local noise and emissions regulations before installation.
