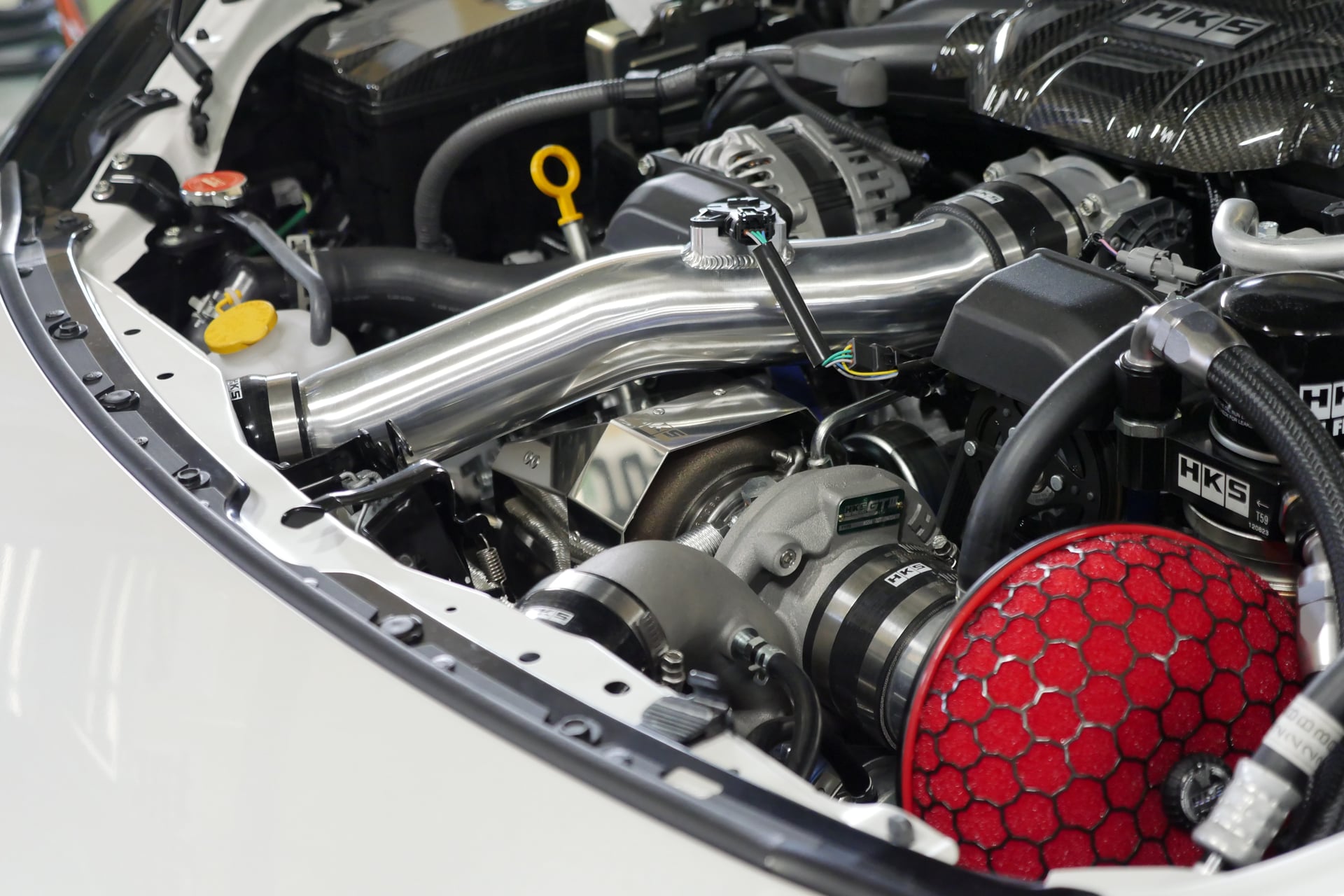

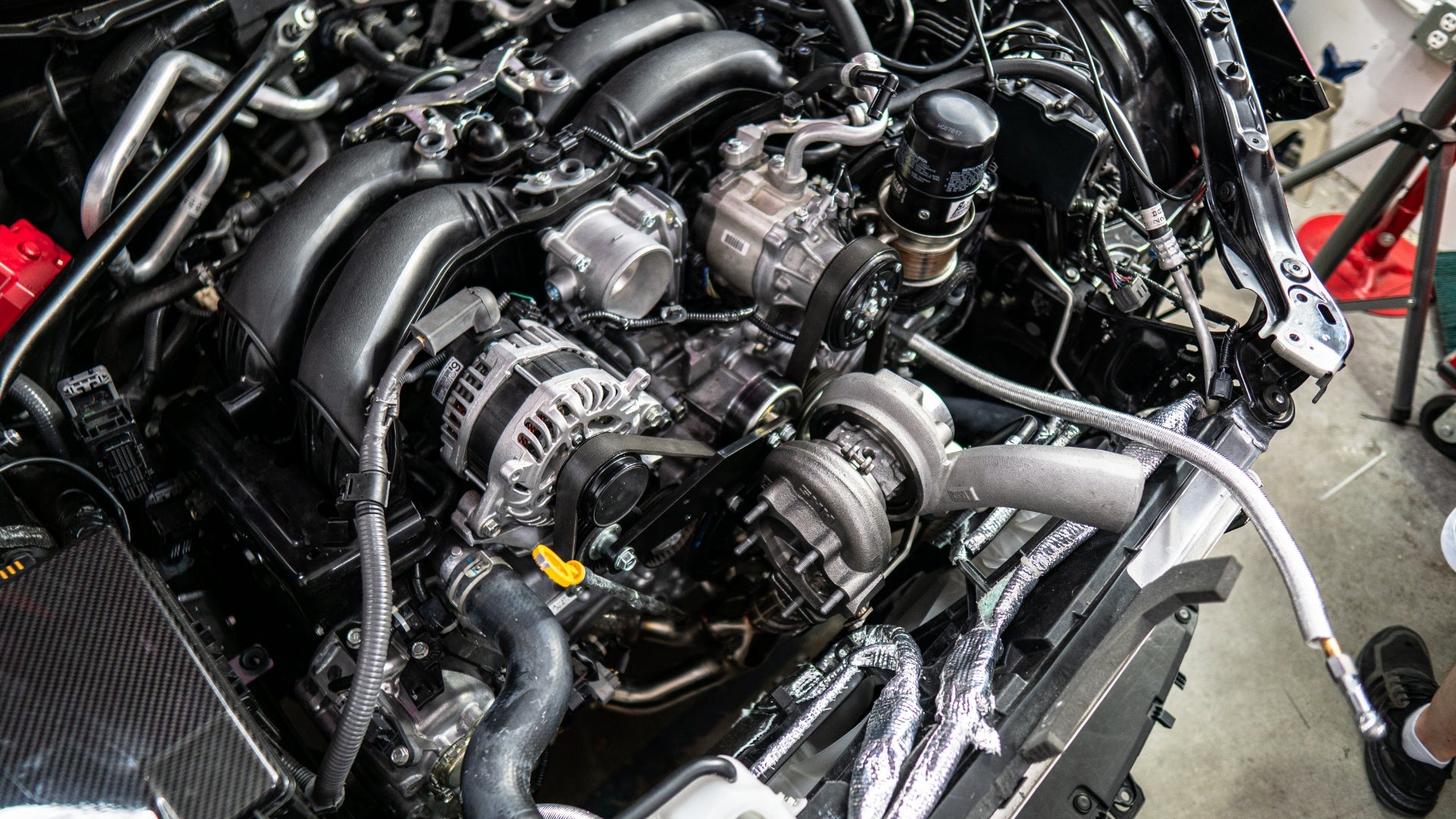

HKS GTIII-RS Bolt On Turbo Kit - 2022 Toyota GR86 / 2022 Subaru BRZ

Ready to take your GR86 or BRZ beyond naturally aspirated performance? The HKS GTIII-RS Bolt-On Turbo Kit is a thoroughly engineered forced induction package designed specifically for the FA24-powered 2022–2026 Toyota GR86 and Subaru BRZ. Built around the proven HKS GTIII-RS turbocharger, this kit delivers a major increase in power while maintaining the quality, fitment, and reliability HKS is known for.

HKS reports gains of up to +128 hp and +104 lb-ft of torque over stock power figures, based on Japanese-spec BRZ testing. With a complete package that includes the turbocharger, exhaust manifold, catted downpipe, intercooler, piping, and intake components, this is one of the most complete and well-developed turbo solutions available for the second-generation 86/BRZ platform.

Key Features

• GTIII-RS Turbocharger: Mid-range HKS turbo designed to pair well with the larger-displacement FA24 engine.
• Major Power Gains: HKS reports up to 273kW max output, an increase of roughly +96kW / +128 hp over stock.
• Strong Torque Increase: Peak torque reaches 398N-m / 293 lb-ft, a gain of approximately +141N-m / +104 lb-ft over stock.
• FA24-Specific Design: Engineered for the 2022+ GR86 and BRZ platform.
• Improved Boost Control: Enlarged bypass port diameter in the exhaust housing helps improve boost pressure control and response.
• Complete Forced Induction Package: Includes turbocharger, manifold, catted downpipe, intercooler, piping, and Super Power Flow intake.
• Stock Clutch / Injector Compatible: Designed to be compatible with factory clutch and injectors at the intended base setup.
• Upgrade Path Available: Higher boost levels can be supported with HKS EVC7 and supporting clutch upgrades.

Why We Like It

The FA24 already gives the second-generation GR86/BRZ a stronger foundation than the original FA20, and this HKS kit takes that platform to another level. It is not just a turbo slapped onto the car; it is a full HKS-developed system with the hardware needed to support proper airflow, charge cooling, exhaust flow, and boost control. For owners who want a serious, name-brand forced induction setup, this is one of the big ones.

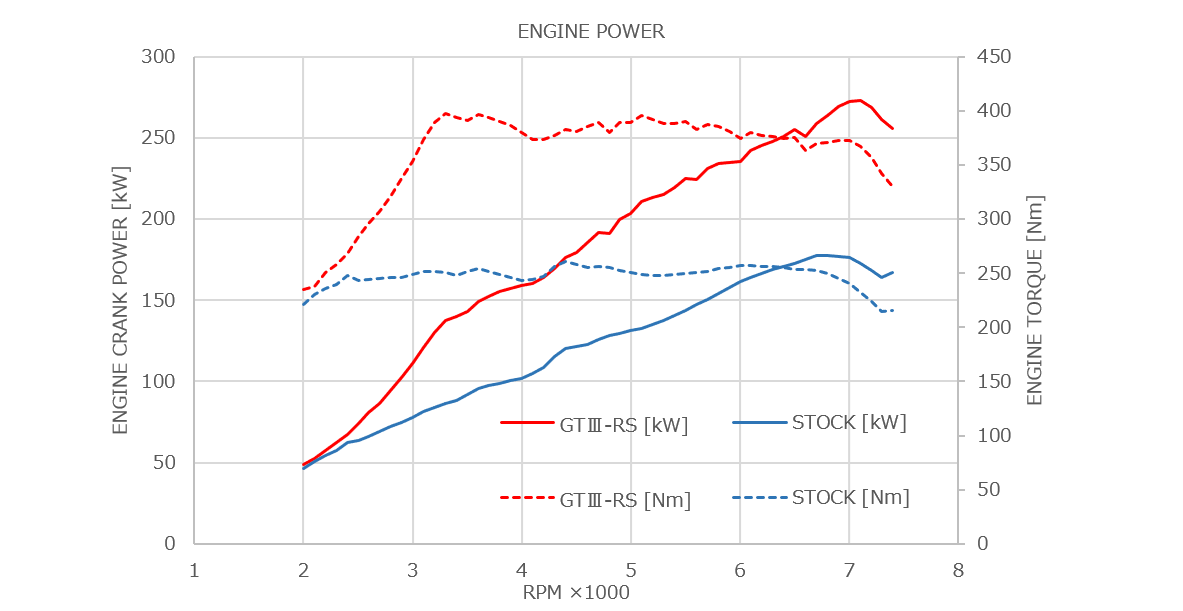

Performance

• Maximum Output: 273kW reported by HKS
• Power Gain: +96kW / approximately +128 hp over stock
• Peak Torque: 398N-m / approximately 293 lb-ft
• Torque Gain: +141N-m / approximately +104 lb-ft over stock
• Testing Reference: Based on Japanese-spec BRZ data from HKS

Turbocharger Details

• Turbocharger: HKS GTIII-RS
• Turbine A/R: 0.80
• Wastegate: Internal wastegate, 65kPa
• Application: FA24 GR86 / BRZ forced induction setup

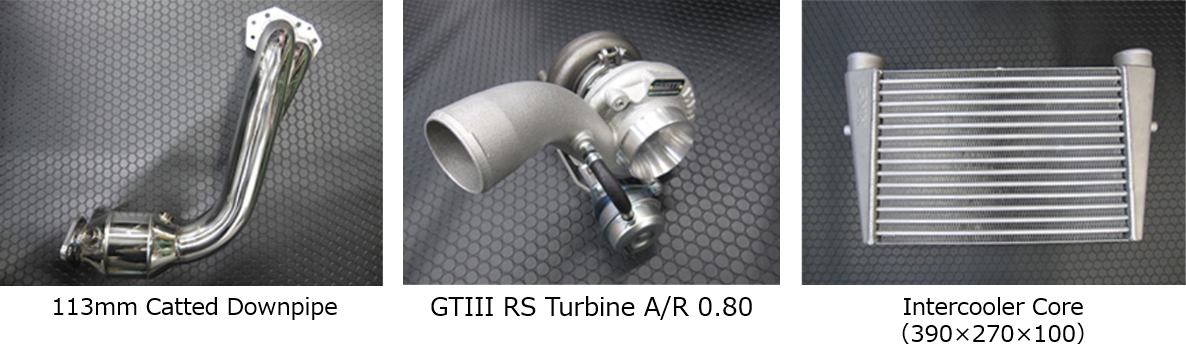

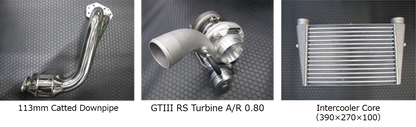

What’s Included

• HKS GTIII-RS turbine, A/R 0.80 with 65kPa internal wastegate
• Exhaust manifold
• 113mm catted downpipe
• Intercooler
• Intercooler piping
• HKS Super Power Flow intake
• Required installation components per HKS kit contents

Recommended Supporting Upgrades

• For Higher Boost: HKS EVC7 Boost Controller, part number 45003-AK013
• For Higher Boost / Increased Power: Clutch upgrade required
• Recommended Clutch: HKS LA Clutch, part number 26010-AT002

Installation & Tuning Notes

HKS Provided Install Instructions:11001-KT007

• Professional installation is strongly recommended.
• Proper ECU calibration/tuning is required for safe operation.
• Fuel quality, supporting modifications, and tuning will affect final power output and reliability.
• If increasing boost beyond the base setup, supporting drivetrain and engine management upgrades are required.
• Always verify all oil, coolant, intake, exhaust, and intercooler connections before startup.

Compatibility & Disclaimers

Designed for 2022–2026 Toyota GR86 and Subaru BRZ applications with the FA24 engine. Power figures are based on HKS testing and may vary depending on vehicle condition, fuel, tuning, supporting modifications, climate, and dyno conditions. Forced induction systems require proper installation, tuning, and maintenance. Always verify emissions legality and local regulations before installation.
