The Hachi DauntlessOBD Enhanced + ASC CAN Adapter is a wireless vehicle configuration, diagnostics, and CAN data solution developed specifically for the 2022–2026 Subaru BRZ and Toyota GR86. Instead of permanently occupying the factory OBD2 port, the included adapter connects DauntlessOBD to the vehicle's ASC active sound control / fake engine noise connector for clean, out-of-the-way CAN bus access.

DauntlessOBD unlocks a wide range of platform-specific functions including automatic door locking, remote window control, persistent EyeSight and TPMS system settings, TPMS sensor programming, factory vehicle customization, manufacturer-specific diagnostics, and CAN data logging. It is a compact solution for owners who want deeper control over their GR86 or BRZ without leaving a traditional OBD2 adapter hanging beneath the dashboard.

Key Features

• Platform-Specific GR86 / BRZ Support: Enhanced functionality developed specifically for the 2022+ Toyota GR86 and Subaru BRZ.
• ASC CAN Connection: Included adapter connects through the factory active sound control connector instead of occupying the main OBD2 port.
• Automatic Door Locking: Enables automatic door locking while driving.
• Remote Window Control: Adds supported window control functionality through the factory key fob.
• Persistent System Control: Enable or disable supported vehicle systems such as EyeSight and TPMS without the settings automatically resetting after every ignition cycle.
• TPMS Sensor Programming: Program TPMS sensor IDs and store multiple wheel sets for easier swaps.
• Factory Setting Customization: Change supported Techstream-style vehicle settings such as automatic recirculation, DRLs, seatbelt chime, factory alarm settings, and more.
• Manufacturer-Specific Diagnostics: Read and clear supported trouble codes from vehicle modules when connected through the main OBD2 port.
• CAN Data Logging: Provides CAN data to compatible motorsport and logging applications.
• Wheel Speed Data Capability: CAN adapter can also be connected to EC CAN behind the glovebox for individual wheel speed logging.

Why We Like It

This is much more useful than a basic Bluetooth OBD2 reader. DauntlessOBD gives GR86 and BRZ owners access to vehicle-specific settings and CAN functionality while the included ASC adapter lets the unit stay connected without tying up the primary diagnostic port. For cars that see daily driving, multiple wheel setups, track days, or frequent data logging, it adds a lot of functionality in a very compact package.

Vehicle Customization

• Automatic door locking while driving
• Remote window operation from the key fob
• Enable or disable supported EyeSight functions
• Enable or disable supported TPMS functions
• Automatic recirculation settings
• Daytime running light settings
• Seatbelt chime settings
• Factory alarm configuration
• Additional supported Techstream-style vehicle settings

EyeSight Control

Supported EyeSight functions can be disabled persistently, meaning they will remain disabled after the vehicle is shut off and restarted until manually re-enabled.

Important: Disabling EyeSight also disables cruise control until EyeSight is re-enabled.

TPMS Programming

DauntlessOBD allows supported TPMS sensor IDs to be programmed directly to the vehicle. Sensor ID numbers must first be obtained from the sensor body or read wirelessly using a compatible scan tool.

Once the IDs are stored in the app, up to four separate wheel sets can be saved, allowing you to swap between stored TPMS configurations without manually entering each sensor ID again.

Diagnostics

DauntlessOBD can read and clear supported manufacturer-specific trouble codes from vehicle modules when connected to the vehicle's primary OBD2 port.

Note: Diagnostic functionality is not supported while DauntlessOBD is connected through the ASC harness. For diagnostic use, temporarily move the unit to the factory OBD2 port.

CAN Data Logging

DauntlessOBD can provide CAN data to compatible data-logging and motorsport applications such as RaceChrono and TrackAddict. For users who need more detailed chassis information, the included CAN adapter can also be connected to EC CAN behind the glovebox to access individual wheel speed data.

Specifications

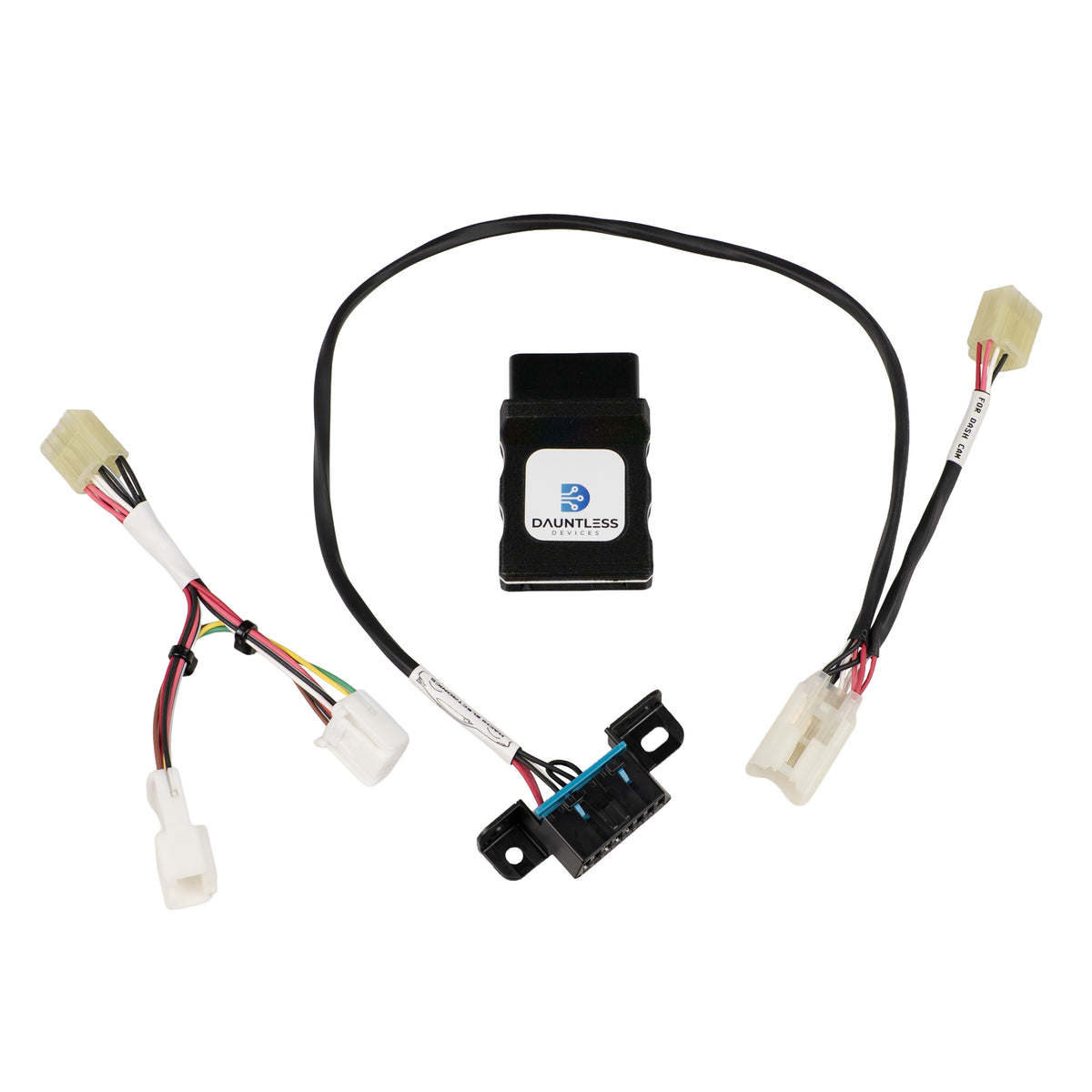

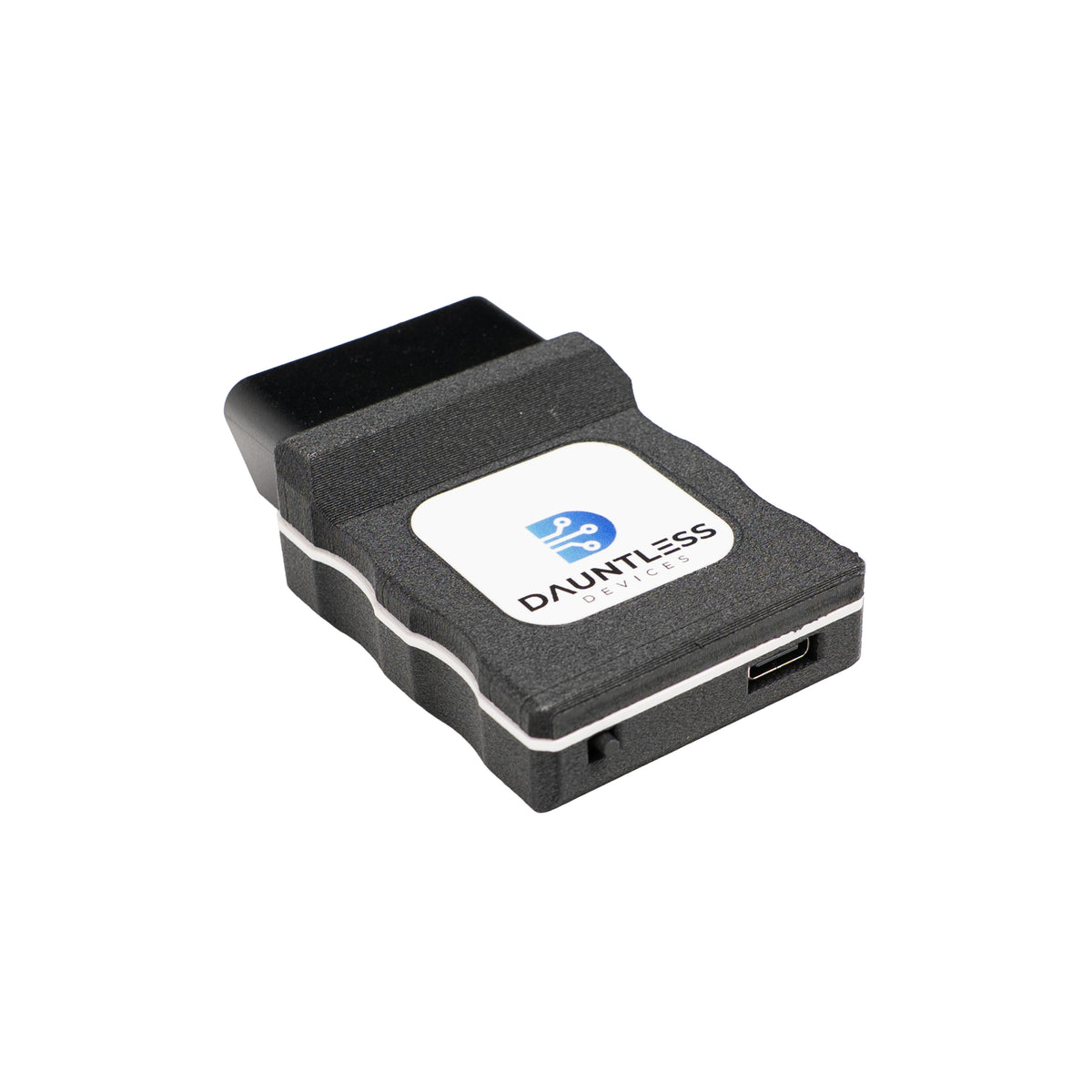

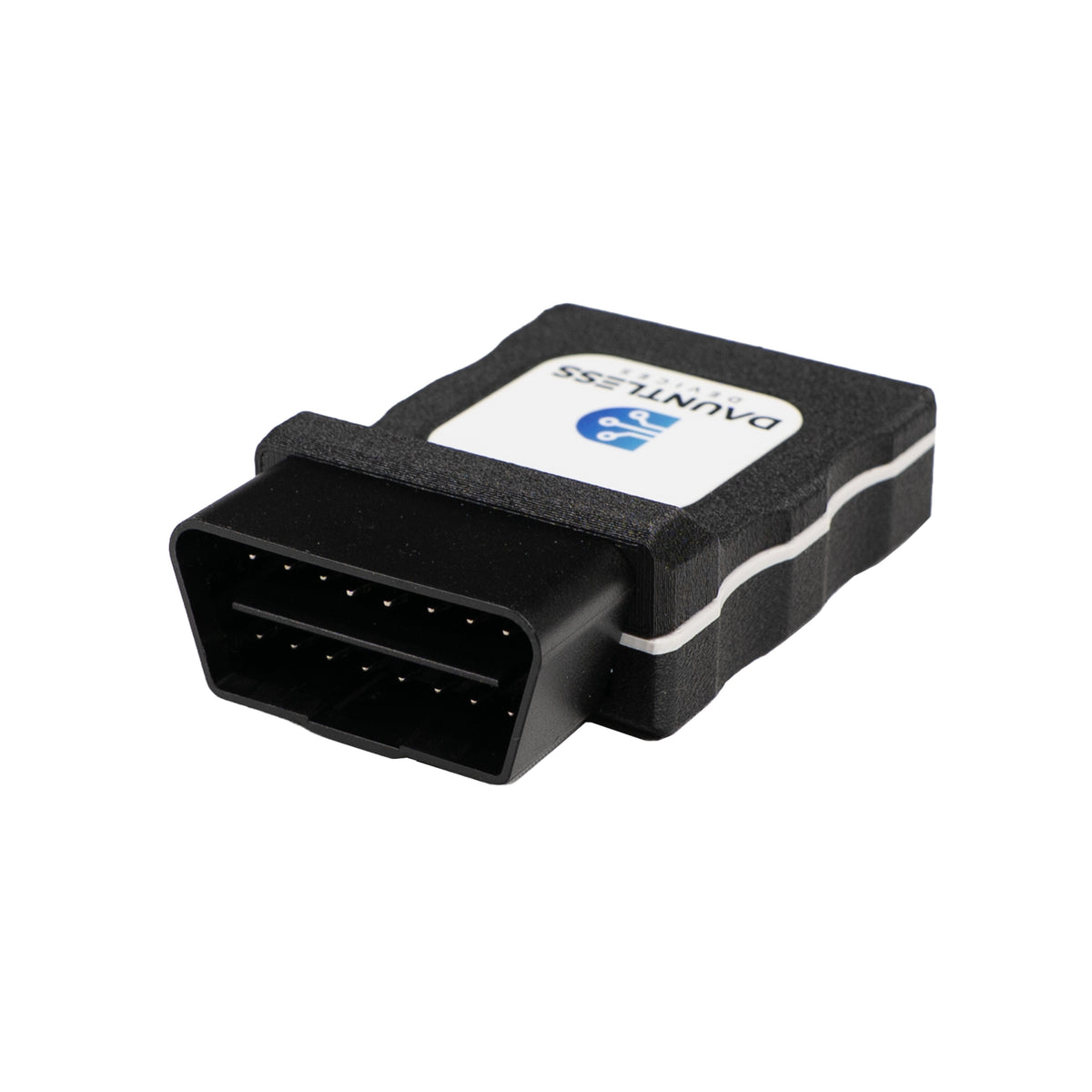

• Product: DauntlessOBD Enhanced + ASC CAN Adapter
• Connection: Wireless OBD2 / CAN interface
• Primary Installation Location: ASC active sound control connector using included CAN adapter
• Diagnostic Connection: Factory OBD2 port
• TPMS Storage: Up to 4 wheel / sensor ID sets
• CAN Logging: Supported with compatible applications
• Additional CAN Access: EC CAN connection available for individual wheel speed data logging

Installation Notes

• Connect the included ASC CAN adapter to the factory active sound control connector.
• Connect DauntlessOBD to the adapter for normal CAN access without occupying the main OBD2 port.
• Move DauntlessOBD to the factory OBD2 port when reading or clearing manufacturer-specific trouble codes.
• TPMS sensor IDs must be known before programming. IDs can be read directly from the sensor or obtained with a compatible TPMS scan tool.
• For individual wheel speed logging, the CAN adapter can alternatively be connected to EC CAN behind the glovebox.

What’s in the Box

• DauntlessOBD Enhanced wireless interface
• ASC CAN adapter for 2022+ GR86 / BRZ
• Included components per kit contents

Compatibility & Disclaimers

Designed for compatible 2022–2026 Subaru BRZ and Toyota GR86 applications. Available functions may vary based on vehicle model year, trim, transmission, installed factory equipment, ECU/module configuration, software version, and connected CAN location. Disabling EyeSight will also disable cruise control until EyeSight is re-enabled. Diagnostic functions require temporary connection to the vehicle's main OBD2 port and are not supported through the ASC harness. Always verify system behavior and vehicle configuration before changing safety-related settings.
