Fumoto Short Nipple Oil Drain Valve (M16-1.5mm) Subaru and Toyota Fitment

Discover the innovative Fumoto Short Nipple Oil Drain Valve (M16-1.5mm) - the ultimate solution for clean and efficient oil changes since 1976! Say goodbye to messy spills, struggling with tools, and frozen drain plugs. Upgrade your oil change game and experience the convenience of easily drawing oil samples with just one simple step. Choose Fumoto for a hassle-free and improved oil change experience.

Features:

  • The one-time drain plug replacement becomes your permanent oil changing solution
  • Mess-free, tool-free oil changes that keep your hands, clothes, and floor clean.
  • Money-saving DIY oil changes are now easier.
  • The straight flow structure designed for quick oil draining.
  • The valve is double-sealed from both ends to prevent leaks.
  • Our original UP & TURN lever motions withstand any engine vibrations for no accidental openings.
  • The lever clips provide additional security to the valves.
  • All the valves are manufactured by our affiliated ISO-certified factory in Japan and leak-tested prior to being shipped.
  • Limited Lifetime Warranty for the item(s) purchased from Fumoto or our authorized sellers in the US or Canada.

Specs

  • Weight: .18lbs
  • Thread size: M16-1.5
  • Sealing: Fiber Gasket
  • Body: Forged brass
  • Hydraulic test pressure: 0.6MPa
  • Leakage test pressure: 0.10 MPa
  • Pressure Rating: 145 PSI
  • Temp rating: -40 to 365 Fahrenheit
  • Recommended Torque: 221in lbs (18 ft lbs)

Lever Clips for Precaution

When Fumoto valves are closed they are securely locked and will not open by themselves. Lever clips provide additional security to the valves and can only be attached when a lever is fully seated in the locked position. Installing a lever clip confirms that your valve is reliably locked and closed.

Trusted by the Industries

Fumoto has been granted Genuine Parts status in Japan by major auto and truck companies such as; Toyota, Nissan, Mazda, Fuso, UD Trucks, and Isuzu. In the United States, the product has been used by Cummins, Caterpillar, Daimler, Paccar, Kenworth, Freightliner, Peterbilt, JLG, Taylor Power Systems, and many others.

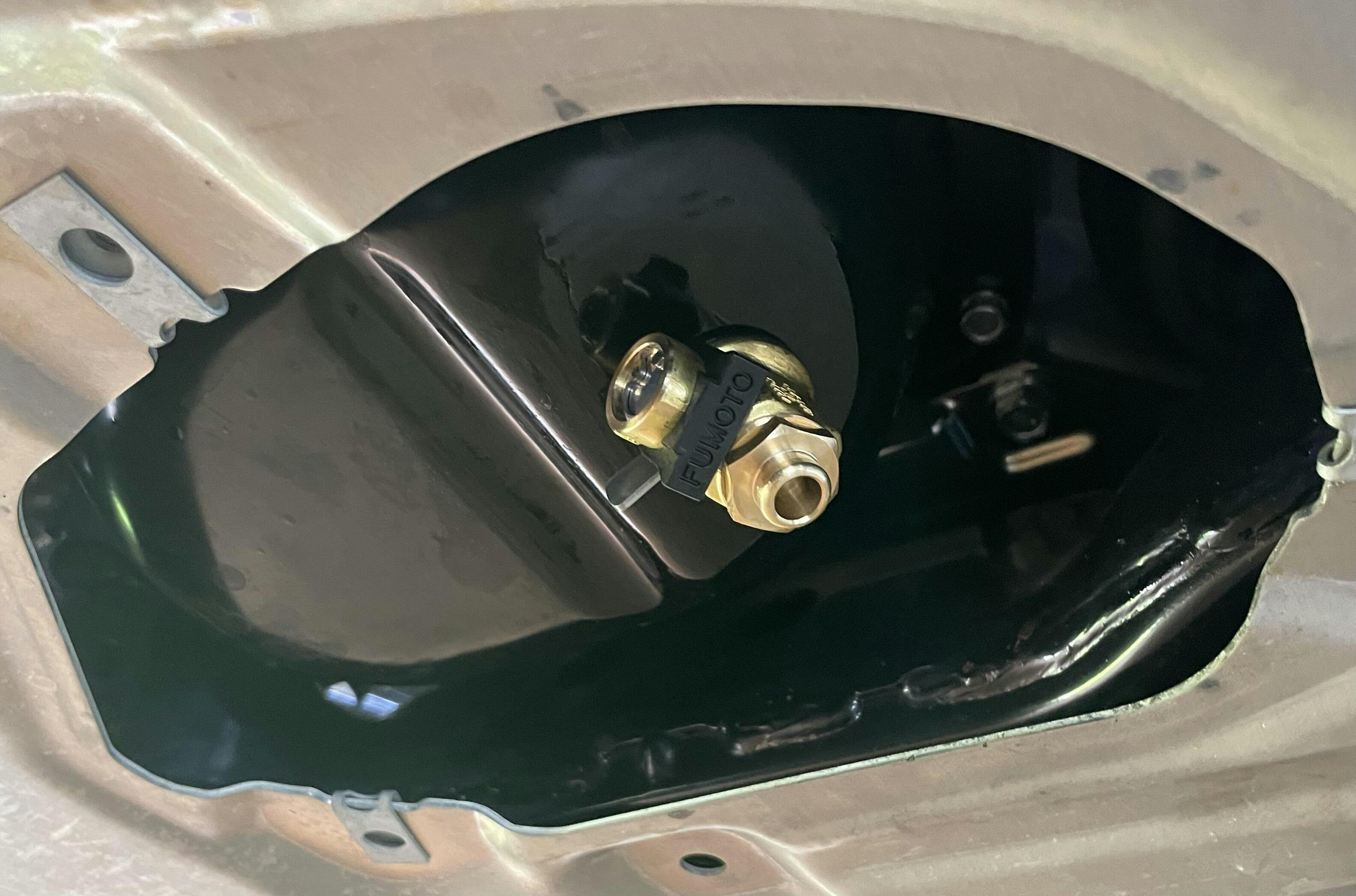

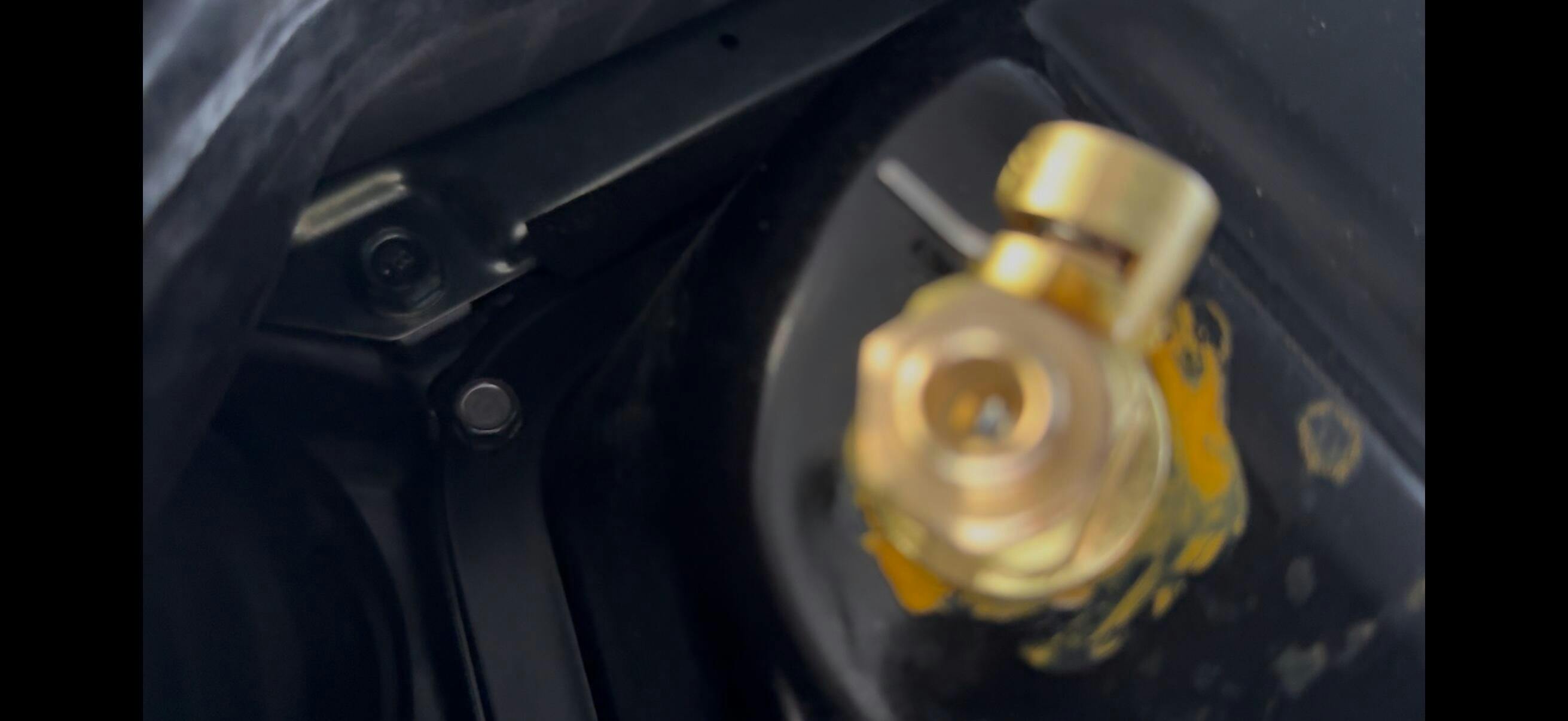

Driven.Media Install Instructions

1. Prepare:
Assemble: Place the blue fiber gasket (not required for tapered thread or O-ring valves) onto the valve so it will sit flat between the oil pan and the valve once installed.
Prepare: Remove drain plug from oil pan. Drain old oil. Clean drain port area before installation.

2. Install:
Hand tighten: Thread the valve into the oil drain port by hand, do not cross-thread.
Fully Tighten: Tighten with a crescent wrench on the body of the valve* â…› to ¼ turn past hand tight, or to the value shown on the torque chart for your valve model. Do not over tighten.
Do not use a wrench on the head of the nipple outlet if present.
An adapter may be required if the valve cannot be completely tightened due to contact with the oil pan.

3. Close and Fill up:
Close the the valve by firmly turning the control lever clockwise until it stops and is perpendicular to the oil outlet. The lever will click into the recess and lock in position.
Install a lever clip (optional) and refill with new oil.

OPERATION
To open the valve, remove the lever clip if installed then lift the lever and turn it.
To close the valve, For Standard valves turn the lever firmly until it stops and is perpendicular to the oil outlet. For SX type valves turn the lever firmly until it stops and is parallel to the oil outlet. The lever will click into the recess and lock in position. You should not be able to rotate the lever without first lifting upward. Reinstall the lever clip around the turret of the valve. If the lever is not seated properly, the lever clip will not fit.

Warning:
Check the oil pan for leaks before operating your vehicle.
Drive carefully at all times, and if you run over any foreign object on the road pull over and inspect the valve for any damage or leak.

This Product Fits

Confirmed Vehichle Fitment for Fumoto Short Nipple Oil Drain Valve (M16-1.5mm) Subaru and Toyota Fitment

  • 2022-2025 Toyota GR86
  • 2022-2025 Subaru BRZ
  • 2013-2016 Scion FR-S
  • 2013-2016 Subaru BRZ
  • 2013-2016 Toyota GT 86
  • 2017-2020 Subaru BRZ
  • 2017-2020 Toyota 86
