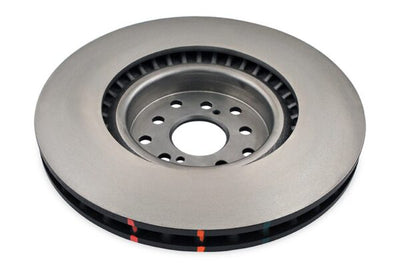

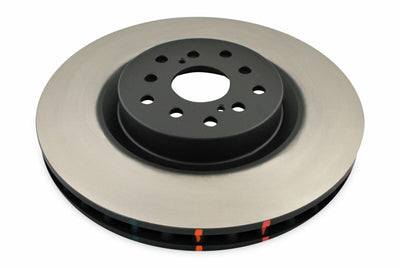

DBA is a popular Australian brand producing quality brake components for the 86 BRZ FRS.

The 4000 Series is a direct replacement for single piece performance brake rotors, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBAs metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBAs Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

 Fits 2017-2022+ Toyota 86 / GR86 / Subaru BRZ with Performance Pack Brembo brake setup.

* Does not directly fit cars with the Standard brake setup *

Features:

• Surface Design Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.*
• Anti Rust Painted non-friction areas to prevent rust and enhance appearance.
• BI-Directional Use Symmetrical slotting and/or drilling for universal left/right use.*
• Thermal Stability Profiling Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
• Thermal Efficiency Centre-split core castings for increased heat transfer and thermal efficiency.
• CBN Cubic Boron Nitride (CBN) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
• Thermographic Heat Paint Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
• High Carbon Alloyed Iron Formulation allows for optimal interaction with DBA’s thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
• Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*

* Some rotor variants may not contain all features listed *

Specifications:

Front Rotors:

• 326x30mm outer diameter and thickness
• Vane Design: KP Vents
• Plain Rotor

Rear Rotors:

• 316x20mm outer diameter and thickness
• Vane Design: KP Vents

• Plain Rotor

Install Instructions:

DBA Install Guide
