DBA is a popular Australian brand producing quality brake components for the 86 BRZ FRS.

The Street Series T2 is the perfect direct replacement for OE brake rotors, but with DBA's T2 slot design. T2 slots offer an even quieter, more responsive and smoother brake pedal feel, with an increase of the number of exit points for brake pad dust and gasses to escape.

DBA recommends the T2 slot for daily drivers as an OEM+ upgrade that will stand up to the occasional track day or autocross event.

Featuring DBAs Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

 Fits 2012-2022+ Toyota 86 / GR86 / Subaru BRZ / Scion FR-S with standard brake setup.

* Does not directly fit cars with the Brembo brake setup *

Features:

• Surface Design Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.*
• Anti Rust Painted non-friction areas to prevent rust and enhance appearance.
• BI-Directional Use Symmetrical slotting and/or drilling for universal left/right use.*
• Thermal Stability Profiling Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
• Thermal Efficiency Centre-split core castings for increased heat transfer and thermal efficiency.
• CBN Cubic Boron Nitride (CBN) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
• Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*

* Some rotor variants may not contain all features listed *

Specifications:

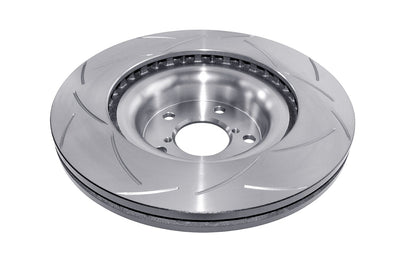

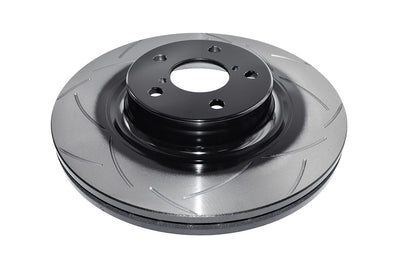

Front Rotors:

• 294x25mm outer diameter and thickness
• Vane Design: KP Vents
• Black finish on rotor hub
• T2 Slotted

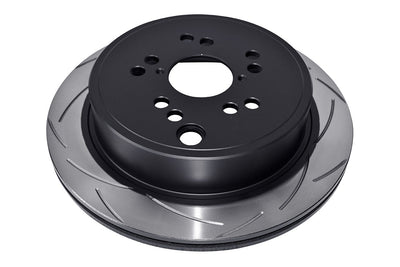

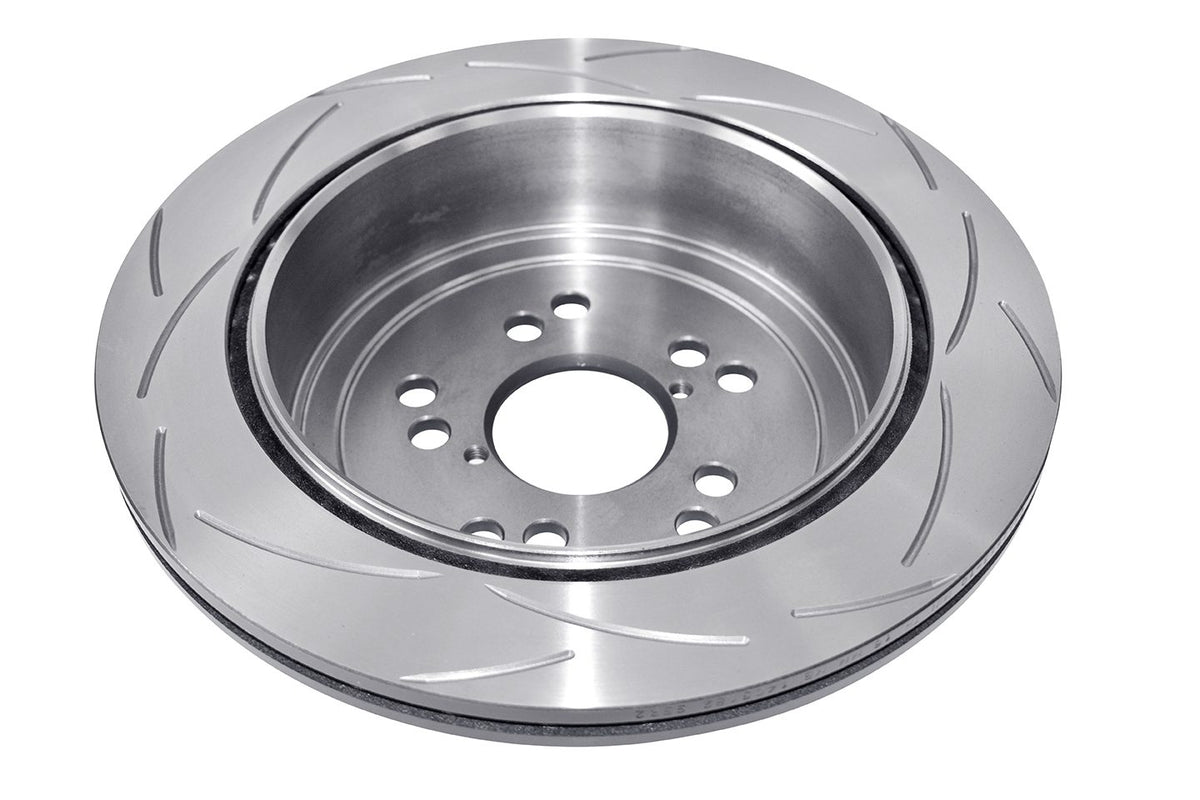

Rear:

• 290x18mm outer diameter and thickness
• Vane Design: KP Vents
• Black finish on rotor hub
• T2 Slotted

Install Instructions:

DBA Install Guide
