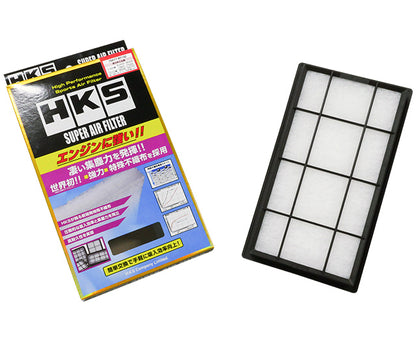

HKS SUPER FILTER TOYOTA Type 32 - 2022+ Toyota GR86 / Subaru BRZ

The HKS Super Filter Toyota Type 32 is a stock replacement air filter upgrade for the 2022+ Toyota GR86 & BRZ . Designed to fit in the factory airbox, this filter uses HKS’s newly developed dry non-woven fabric filter material to deliver a strong balance of low intake resistance and high dust collection capacity.

Unlike basic replacement filters, the HKS Super Filter uses a density gradient structure that becomes finer through each layer. This helps capture dust and particles of different sizes more effectively while reducing airflow restriction, giving your FA24 clean air without sacrificing response.

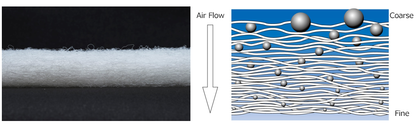

Newly Developed Dry Non-woven Fabric Filter

The density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught in the most effective way. Optimizing the fiber components reduces the ventilation resistance.

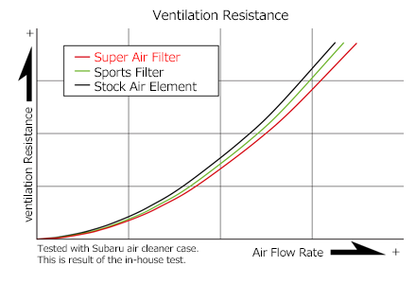

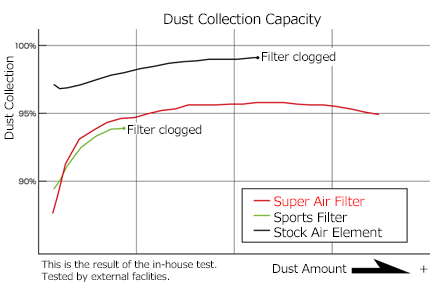

Low Resistance & High Dust Collection Capacity

Even though the intake resistance is reduced, the dust collection capacity is higher than previous model. (Collected more than 95% dust volume during in-house testing) Reliably capturing dust to provide clean air to the engine.

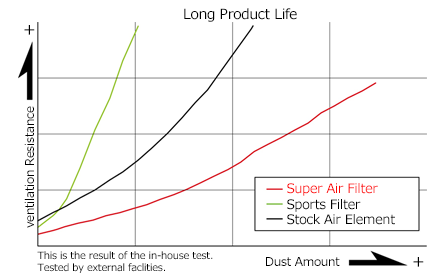

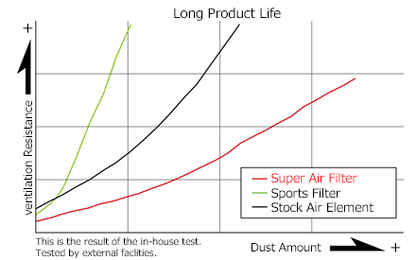

Long-term Low Resistance

Even after long-term use of the filter, the intake resistance stays as low as new.

Specifications

• Filter Material: Monolayer polyester non-woven fabric
• Filter Structure: Density gradient structure
• Filter Type: Dry replacement filter
• Airbox Compatibility: Factory airbox replacement
• Monolayer Polyester Non-woven Fabric (Density Gradient Structure)
• Stock Filter replacement for: SU003-06405 / 17801-77050 16546AA170 / 16546AA190

Install Instructions:

1. Remove Super Air Filter from a vehicle.
2. Disassemble Super Air Filter frame and dispose the old filter. In case if the frame use metal clips, undo metal clips first, then proceed to removing the filter. Please be careful not to damage the frame.
3. Prepare the new filter by cutting a replacement filter material (this product), if necessary. (Details below)
4. Fit a prepared filter into the frame. Parts with letters [○○○○-T] should be on the top of the coarse filter surface. Confirm that there are no gaps between the filter and frame sides.
5. Assemble the frame. In case if the frame uses metal clips, use metal clips to fixate the frame.
6. Due to the fixed difference in filter thickness, there may be a large lift between the top and bottom of the frame.
   In such cases, push the filter into place while installing.
